Chemical Pumps Types

Chemical Pumps

Chemical pumps classified

According to pump material and application domain classified as follows:
1)Stainless steel materials(304 316 316L):Widely used in petroleum, chemical, metallurgy, synthetic fiber, pharmaceutical, food, synthetic fiber, etc., to transport alkaline liquids;
2)Fluoroplastic material:material code:FEP,F46,PVDF,UHMWPE,FRPP. Used for transfer any acid or alkaline corrosive liquids;
3)Cast iron material:Used for industrial, urban water supply, drainage, also used in farmland, orchard irrigation, for transfer water or physical and chemical properties similar to clean water other liquids.
4)Structure type:End suction, self-priming pump, gear pump, diaphragm pump, screw pump,magnetic drive pump.

Application:

Chemical pump suitable for chemical, oil, chemical industry, metallurgy, light industry, printing and dyeing, pharmaceutical, environmental protection, water desalination, offshore oil, paper making, food and other industrial department transfer organic type inorganic chemical medium not containing solid particles, oil products and corrosive liquid.

Material:

fluorine plastic, FEP,F46,PVDF,UHMWPE,FRPP,stainless steel(304 316 316L)

Chemical pump types

Plastic chemical pumps

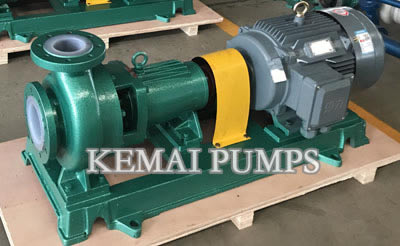

plastic lined chemical pumps

plastic lined chemical pumps

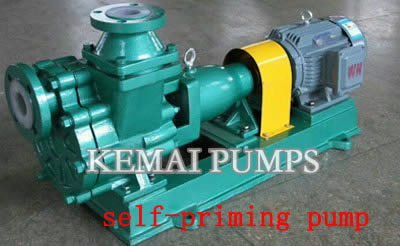

Lined self-priming chemical pump

Lined self-priming chemical pump

This pump has the corrosion resistance, abrasion resistance, resistant high temperature, not aging, high mechanical strength, smooth operation, reasonable structure, advanced sealed performance is reliable, easy disassembly maintenance, long service life, etc.The corrosion and abrasion resistance of chemical centrifugal pumps have been proved by practical use and unanimously recognized by the majority of users.

Lined chemical pump material have FEP,F46,PVDF,UHMWPE,FRPP,It is single stage cantilever centrifugal pumps, pump adopts metal shell lining fluorine plastic impeller, pump cover, using metal embedded parts outsourcing fluorine plastic pressure molding. The product structure is reasonable and reliable performance. Widely used in automobile manufacturing pickling process, acid and alkali manufacturing, painting process, non-ferrous metal smelting,the electrolyte transport project of chlorine ion membrane water and wastewater treatment, electroplating, pesticide industries.
Operating temperature:-20℃~150℃
Flow:4~200M3/H

Stainless steel chemical pumps

stainless steel chemical pump

stainless steel chemical pump


Self-priming chemical pump

Self-priming chemical pump

This single-stage single suction horizontal end suction centrifugal pumps,Ideal for delivering corrosive liquids similar to water in terms of viscosity, including organic and non-organic chemicals.
SS chemical centrifugal pump is applicable to chemical plant, used for conveying not containing solid particles, corrosive liquids similar to water viscosity, is medium temperature is 20 ℃ ~ 105 ℃.Pump maximum working pressure is 1.6Mpa, and inlet pressure is not higher than 0.6mpa.
Flow:6~400M3/H

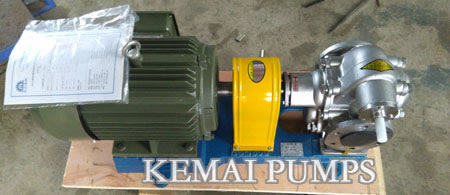

Chemical gear pumps

Chemical gear pumps

Chemical gear pumps SS 304 316 316L

Gear pumps can transfer higher viscosity liquid.It is also an indispensable pump product in chemical industry.
Suitable viscosity:10~100000cst
Flow:3L~9600L/min
Temperature:-20~280℃
Material: cast iron,cast steel,stainless steel(304 316 316L)
