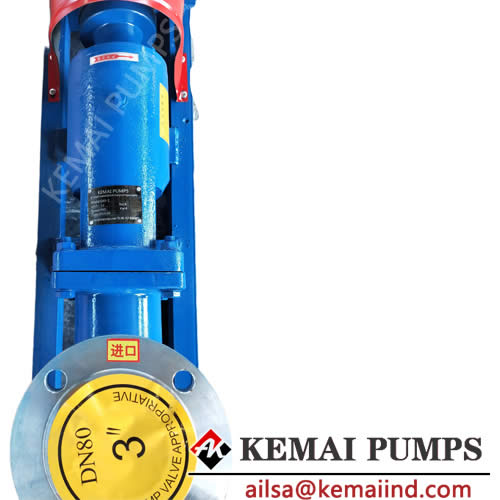

Product Description

G35-1 Model significance:1- for the primary pump, 2- for the secondary pump.Series single screw pump.

Nominal diameter of screw (mm).

G type single screw pump performance range:

Model：G 20, G 25, G 30, G 35, G 40, G 45, G 50, G 55, G 60 ,G 65, G 70.

Size: 1 inch,2 inch,3 inch,4 inch,5 inch,6 inch.

Flow: 0.8~38m³/h Corollary power:0.75~18.5kW

Head: 60~120m Inlet diameter: 25~150mm



1, discharge cavity 2, tie rod 3, screw rubber sleeve 4, screw shaft 5, universal joint assembly 6, suction body
7, joint shaft 8, filler 9, packing gland 10, bearing seat 11、Bearing cover 12, motor 13, coupling 14, bushing
15, bearing 16, transmission spindle 17, base

Performance Parameters:

Model	Speed r/min	Flow m3/h	Pressure MPa	Motor KW	Head m	Inlet mm	outlet mm
G20-1	960	0.8	0.6	0.75	60	25	25
G20-2	960	0.8	0.6	1.5	120	25	25
G25-1	960	2	0.6	1.5	60	40	32
G25-2	960	2	1.2	2.2	120	40	32
G30-1	960	5	0.6	2.2	60	50	40
G30-2	960	5	1.2	3.0	120	50	40
G35-1	960	8	0.6	3.0	60	65	50
G35-2	960	8	1.2	4.0	120	65	50
G40-1	960	12	0.6	4.0	60	80	65
G40-2	960	12	1.2	5.5	120	80	65
G50-1	720	20	0.6	5.5	60	100	80
G50-2	720	20	1.2	7.5	120	100	80
G60-1	720	30	0.6	11	60	125	100
G60-2	720	30	1.2	11	120	125	100
G70-1	720	38	0.6	11-8级	60	150	125
G70-2	720	38	1.2	18.5		150	125
