IHF Chemical Centrifugal Pump
IHF Chemical Centrifugal Pump
Model:IHF
Product name:IHF Chemical Centrifugal Pump,IHF pump,IHF chemical pump
Speed:1450~2900RPM
Feature:transport acid and alkali and other liquids
Applicable temperature: -20 °C ~ 150 °C
Product Description

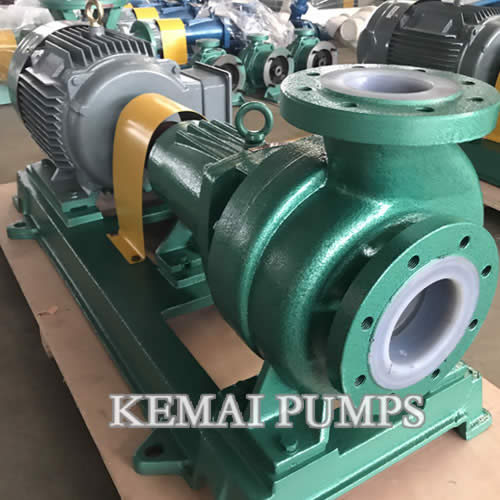

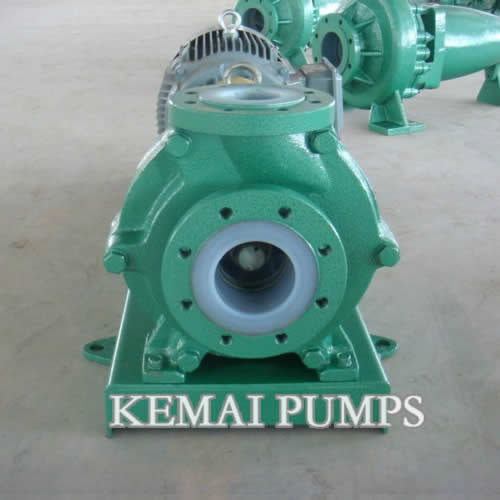

IHF single-stage single-suction fluorine plastic alloy chemical centrifugal pump (referred to as IHF chemical centrifugal pump) is designed and manufactured according to international standards and combined with non-metallic pump technology. The pump body is made of metal shell lining polyfluorinated ethylene propylene (F46). The pump cover, impeller and bushing are all made of metal inserts outside the fluoroplastic sinter pressed, the shaft seal adopts externally mounted advanced bellows mechanical seal, static The ring is made of 99.9% aluminum oxide ceramic (or silicon nitride), and the moving ring is made of PTFE filling material, which has excellent corrosion resistance and wear resistance. The inlet and outlet of the pump are all reinforced with cast steel to enhance the pressure resistance of the pump. The actual use shows that the pump has the advantages of corrosion resistance, wear resistance, high temperature resistance, no aging, high mechanical strength, stable operation, advanced and reasonable structure, strict and reliable sealing performance, convenient disassembly and overhaul, and long service life.
IHF Chemical Centrifugal Pump Product Usage
Kemai IHF pump is widely used in: pickling and painting processes in automobile manufacturing and steel industry; electrolyte transportation in non-ferrous metal smelting; chlorine water, wastewater treatment and acid addition in ionic membrane caustic soda projects in steel and automobile manufacturing. .
Applicable temperature: -20 °C ~ 150 °C.
IHF Chemical Pump Design Features
1. IHF centrifugal pumps are designed and manufactured in accordance with international standards in accordance with international standards. Its performance, rated performance points and dimensions are equivalent to the relevant international standards and national standards:
2. China kemai IHF pump body and the pump cover are made of a metal-based body lined with fluoroplastics, and the impeller is molded with a dedicated mold in the metal insert outsourcing fluoroplastic alloy;
3, a wide range of corrosion resistance, high strength and durability;
4. The shaft seal adopts advanced exterior-type bellows mechanical seal, and the world-advanced SSIC industrial ceramics are used for the moving and stationary ring of the grinding, and other materials can also be used according to the user’s special working conditions to grind the material.
5, corrosion resistance, wear resistance, sealing, easy installation, easy maintenance.
| KEMAI IHF Chemical Centrifugal Pump Model | Speed=2900r/min
density=1000kg/m3 |
|
Speed=1450r/min
density=1000kg/m3 |
||||||
| Flow
(m3/h) |
Head
（m） |
Motor（kw） | NPSH（m） | Flow
(m3/h) |
Head
（m） |
Motor（kw） | NPSH（m） | ||
| IHF40-25-125 | 4
6 8 |
23
20 18.5 |
1.5 | 2.0 | 2
3 4 |
5.5
5 4.5 |
0.55 | 2.0 | |
| IHF40-25-160 | 4
6 8 |
34
32 28 |
2.2 | 2.0 | 2
3 4 |
9
8 7 |
0.55 | 2.0 | |
| IHF40-25-200 | 4
6 8 |
52
50 48 |
4 | 2.0 | 2
3 4 |
13.5
12.5 12 |
0.75 | 2.0 | |
| IHF40-25-250 | 4
6 8 |
82
80 78 |
7.5 | 2.0 | 2
3 4 |
20.5
20 19.5 |
1.5 | 2.0 | |
| IHF50-32-125 | 10
12.5 15 |
23
20 18.5 |
2.2 | 3.0 | 5
6.3 8 |
5.5
5 4.5 |
0.55 | 3.0 | |
| IHF50-32-160 | 10
12.5 15 |
34
32 28 |
4 | 3.0 | 5
6.3 8 |
9
8 7 |
0.55 | 3.0 | |
| IHF50-32-200 | 10
12.5 15 |
52
50 48 |
7.5 | 3.0 | 5
6.3 8 |
13.5
12.5 12 |
1.1 | 3.0 | |
| IHF50-32-250 | 10
12.5 15 |
82
80 78 |
11 | 3.5 | 5
6.3 8 |
20.5
20 19.5 |
1.5 | 3.5 | |
| IHF65-50-125 | 15
25 30 |
23
20 18.5 |
3 | 3.5 | 7.5
12.5 15 |
5.5
5 4.5 |
0.55 | 3.5 | |
| IHF65-50-160 | 15
25 30 |
34
32 28 |
5.5 | 3.5 | 7.5
12.5 15 |
9
8 7 |
1.1 | 3.5 | |
| IHF65-40-200 | 15
25 30 |
52
50 48 |
11 | 3.5 | 7.5
12.5 15 |
13.5
12.5 12 |
1.5 | 3.5 | |
| IHF65-40-250 | 15
25 30 |
82
80 78 |
18.5 | 3.5 | 7.5
12.5 15 |
20.5
20 19.5 |
3 | 3.5 | |
| IHF80-65-125 | 40
50 60 |
23
20 18.5 |
5.5 | 4.0 | 15
25 30 |
5.5
5 4.5 |
1.1 | 4.0 | |
| IHF80-65-160 | 40
50 60 |
34
32 28 |
11 | 4.0 | 15
25 30 |
9
8 7 |
1.5 | 4.0 | |
| IHF80-50-200 | 40
50 60 |
52
50 48 |
15 | 4.0 | 15
25 30 |
13.5
12.5 12 |
2.2 | 4.0 | |
| IHF80-50-250 | 40
50 60 |
82
80 78 |
30 | 4.0 | 15
25 30 |
20.5
20 19.5 |
5.5 | 4.0 | |
| IHF80-50-315 | 40
50 60 |
127
125 123 |
37 | 4.0 | 15
25 30 |
34
32 30 |
7.5 | 4.0 | |
| IHF100-80-125 | 80
100 120 |
22
20 18.5 |
11 | 4.5 | 40
50 60 |
5.5
5 4.5 |
1.5 | 4.5 | |
| IHF100-80-160 | 80
100 120 |
34
32 28 |
15 | 4.5 | 40
50 60 |
9
8 7 |
2.2 | 4.5 | |
| IHF100-65-200 | 80
100 120 |
52
50 48 |
30 | 4.5 | 40
50 60 |
13.5
12.5 12 |
5.5 | 4.5 | |
| IHF100-65-250 | 80
100 120 |
82
80 78 |
45 | 4.5 | 40
50 60 |
20.5
20 19.5 |
7.5 | 4.5 | |
| IHF100-65-315 | 80
100 120 |
127
125 123 |
55 | 4.5 | 40
50 60 |
34
32 30 |
11 | 4.5 | |
| IHF125-100-160 | 150
200 240 |
34
32 28 |
30 | 5.0 | 80
100 120 |
9
8 7 |
5.5 | 5.0 | |
| IHF125-100-200 | 150
200 240 |
52
50 48 |
55 | 5.0 | 80
100 120 |
13.5
12.5 12 |
11 | 5.0 | |
| IHF125-100-250 | 150
200 240 |
82
80 78 |
75 | 5.0 | 80
100 120 |
20.5
20 19.5 |
15 | 5.0 | |
| IHF125-100-280 | 150
200 240 |
102
100 96 |
90 | 5.0 | 80
100 120 |
27
25 23 |
15 | 5.0 | |
| IHF125-100-315 | 80
100 120 |
34
32 30 |
18.5 | 5.0 | |||||
| IHF125-100-400 | 80
100 120 |
53
50 48 |
30 | 5.0 | |||||
| IHF150-125-250 | 240
200 150 |
20.5
20 19.5 |
22 | 6.0 | |||||
| IHF150-125-315 | 240
200 150 |
34
32 30 |
30 | 6.0 | |||||
| IHF150-125-400 | 240
200 150 |
52
50 48 |
45 | 7.0 | |||||
| IHF200-150-250 | 250
400 480 |
20.5
20 19.5 |
45 | 7.0 | |||||
| IHF200-150-315 | 250
400 480 |
34
32 30 |
55 | 7.0 | |||||
| IHF200-150-400 | 250
400 480 |
52
50 48 |
90 | 7.0 | |||||
| IHF250-200-315 | 400
600 700 |
32.3
32 30.7 |
75 | 7.5 | |||||
| IHF300-250-315 | 600
800 900 |
32.3
32 30.7 |
90 | 8.0 | |||||
| IHF300-250-400 | 600
800 900 |
53
50 47 |
160 | 7.5 | |||||
| IHF400-350-315 | 1000 | 15 | 75 | 6.0 | |||||
