Product Description

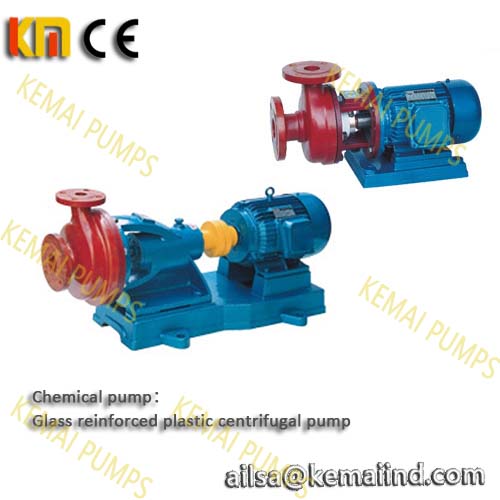

S/FS Series Fiber Reinforced Plastic (FRP) Cenntrifugal Pump Products Overview:

S/FS Series Fiber Reinforced Plastic (FRP) Cenntrifugal Pump design advanced and reasonable structure, high degree of standardization, parts commonality, strong interchangeability, remove the maintenance is very convenient.Contact medium components, the use of polyvinyl butyral modified phenolic glass fiber, high-temperature mold forming phenolic FRP parts.Products with light weight, high strength, deformation, heat resistance, corrosion resistance and other excellent properties.Can partly replace in the field of anti-corrosion molybdenum stainless steel, titanium and titanium alloy and other precious metals.

Shaft seal: WB2 outside mounted F4 bellows mechanical seal, reliable sealing, long time.

Drive: pump through the claw type elastic coupling, driven by motor directly.

S/FS Series Fiber Reinforced Plastic (FRP) Cenntrifugal Pump Use:

S/FS Series Fiber Reinforced Plastic (FRP) Cenntrifugal Pump is mainly used in petrochemical, refining, dyestuff, printing, dyeing, pesticide, pharmaceutical, rare earth, fertilizer and other industries, transportation not containing solid particles, not easily crystallized, temperature is not higher than 100 ºC of all kinds of oxidizing acid (hydrochloric acid, thin sulfuric acid, formic acid, acetic acid, butyric acid) and other corrosive medium indispensable ideal equipment.

S/FS Series Fiber Reinforced Plastic (FRP) Cenntrifugal Pump Main Specification：

Working principle:	Centrifugal
Pump body material:	Fiber reinforced plastic(FRP)
Max.medium temperature:	100℃
Flow rate:	3.2-100m3/h
Max.Head:	50
Caliber:	25-100mm
Caliber connection:	Flange
Seal:	Mechanical seal
Motor connection type:	Directly-coupled,shaft-coupled
Motor power:	0.55-30KW
Motor specification:	220/240/380/400/415/440V,3phase,50/60Hz,etc
Main application	Chemical,strong acid/alkali,etc

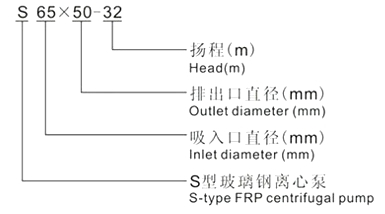

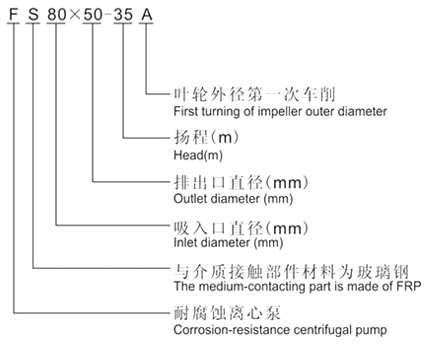

Model implication:





S type FRP centrifugal pump performance parameters:

Model	Inlet (mm)	Outlet (mm)	Folw		Head (m)	Eff. (r/min)	NPSHr (m)	Power (KW)	Speed (r/min)
			(m3/h)	(L/s)
S25×25-12.5	25	25	3.2	0.90	12.5	41	3	0.55/0.75	2900
S40×32-20	40	32	6.3	1.75	20	50	3	1.1/1.5	2900
S40×32-32	40	32	6.3	1.75	32	45	3	2.2/3	2900
S50×40-20	50	40	12.5	3.47	20	53	3	2.2/3	2900
S50×32-32	50	32	12.5	3.47	32	51	3	4/5.5	2900
S65×50-20	65	50	25	6.94	20	64	3	3.0/4	2900
S65×50-25	65	50	25	6.94	25	61	3	3.0/4	2900
S65×50-32	65	50	25	6.94	32	60	3	5.5/7.5	2900
S80×65-32	80	65	50	13.9	32	69	4	7.5/11	2900
S100×80-50	100	80	100	27.8	50	73	5	22/30	2900





FS type FRP centrifugal pump performance parameters:

Model	Inlet (mm)	Outlet (mm)	Folw		Head (m)	Power (KW)	Speed (r/min)
			(m3/h)	(L/s)
FS25×25-15	25	25	4	1.11	15	0.75	2900
FS40×32-20	40	32	6.3	1.75	20	2.2	2900
FS40×32-32	40	32	6.3	1.75	32	3	2900
FS50×40-16	50	40	7.2	2.00	13	2.2	2900
FS50×40-20	50	40	12.5	3.47	20	3	2900
FS50×32-35	50	32	12.5	3.47	32	4/5.5	2900
FS65×50-20	65	50	25	6.94	20	3.0/4	2900
FS65×50-25	65	50	35	9.7	25	4/5.5	2900
FS65×50-32	65	50	25	6.94	32	5.5/7.5	2900
FS80×65-35	80	65	45	12.5	32	7.5/11	2900
FS80×65-35A	80	65	35	9.7	25	5.5/7.5	2900
FS80×65-30	80	65	49	13.6	24	7.5	2900
FS100×80-35	100	80	92.8	25.5	29	15/22	2900
FS100×80-50	100	80	100	27.8	50	22/30	2900
