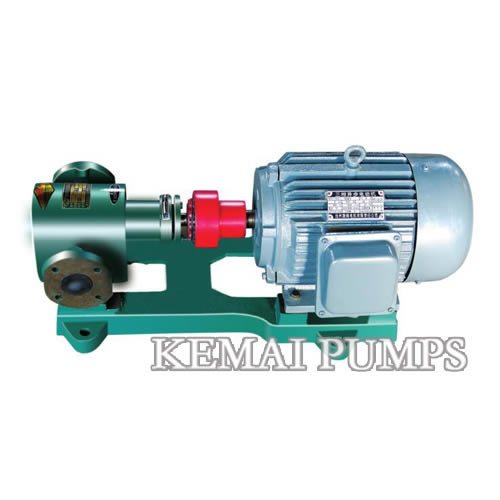

Waste Oil Gear Pump
Waste Oil Gear Pump
Product Description
Waste oil gear pump must have strong sear resistance.China kemai pump gear type waste oil transfer pump gears material is alloy steel.The advantage is long service life.
This pump can transport such medium as:dreg oil,waste oil,coal tar,and so on so forth.
The operating temperature is less than 250 degrees Celsius. The gears surface hardness can reach over HRC60,with the strong wearable nature.
Waste Oil Gear Pump Flow And Head Data
| Model | Inlet/Outlet
mm |
Flow | Head
mpa |
NPSH
m |
Working temperature
oC |
Motor | ||
| L/min | M3/h | Power | Model | |||||
| WOCB-1/0.6 | ø25 | 16.5 | 1 | 0.6 | 5 | 250 | 1.5 | Y90L-4 |
| WOCB-1.5/0.6 | ø25 | 25 | 1.5 | 0.6 | 5 | 250 | 1.5 | Y90L-4 |
| WOCB-2/0.6 | ø25 | 33.3 | 2 | 0.6 | 5 | 250 | 2.2 | Y100L1-4 |
| WOCB-3/0.6 | ø25 | 55 | 3 | 0.6 | 5 | 250 | 2.2 | Y100L1-4 |
| WOCB-5/0.6 | ø40 | 83 | 5 | 0.6 | 5 | 250 | 3 | Y100L2-4 |
| WOCB-6/0.6 | ø40 | 100 | 6 | 0.6 | 5 | 250 | 3 | Y100L2-4 |
| WOCB-7.5/0.6 | ø50 | 125 | 7.5 | 0.6 | 5 | 250 | 4 | Y132M1-6 |
| WOCB-10/0.6 | ø50 | 165 | 10 | 0.6 | 5 | 250 | 5.5 | Y132S-4 |
| WOCB-12/0.6 | ø55 | 200 | 12 | 0.6 | 5 | 250 | 5.5 | Y132M2-6 |
| WOCB-15/0.6 | ø55 | 250 | 15 | 0.6 | 5 | 250 | 5.5 | Y132S-4 |
| WOCB-18/0.6 | ø55 | 300 | 18 | 0.6 | 5 | 250 | 5.5 | Y132S-4 |
| WOCB-38/0.6 | ø100 | 633 | 38 | 0.6 | 5 | 250 | 15 | Y180L-6 |
| WOCB-38/1.0 | ø100 | 633 | 38 | 1.0 | 3 | 250 | 22 | Y200L-6 |
| WOCB-58/0.6 | ø100 | 633 | 58 | 0.6 | 5 | 250 | 18.5 | Y180L-4 |
| WOCB-58/1.0 | ø100 | 633 | 58 | 1.0 | 3 | 250 | 30 | Y200L-4 |
