Product Description

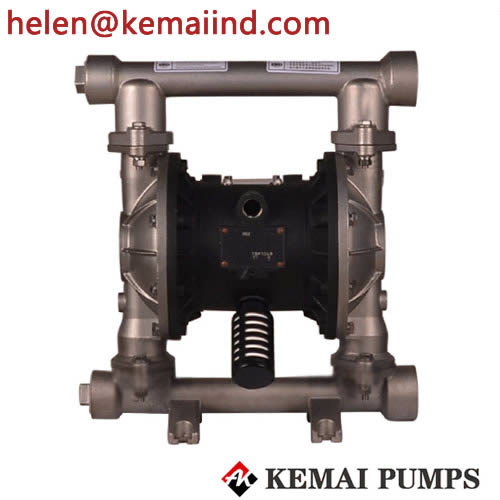

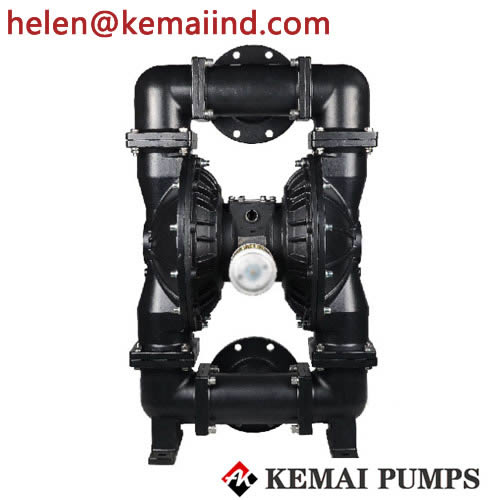

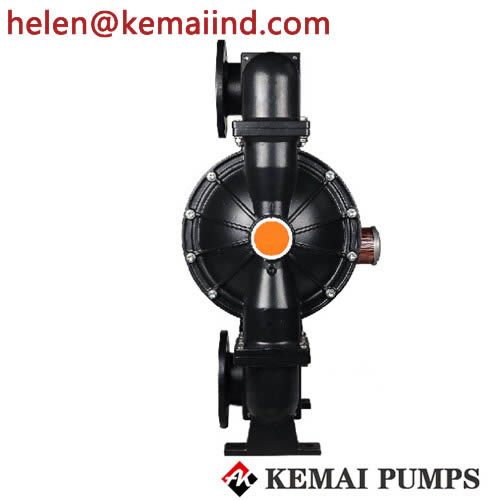

Air Operated Diaphragm Pump-AODD：

Also called AODD Diaphragm pump,Diaphragm pump,Double Pneumatic Diaphragm Pump,Pneumatic Diaphragm Pump.

Air Operated Diaphragm Pumps Advantages:

Idling ,Self-priming , Submerse capability.
Provide stall-free, ice-free zero leak operation.
Epoxy-coated air section for tough environmental conditions.
Low shear force , not easy to damage the material structure.
Bolt joint design provides even sealing pressure for optimal performance
Modular air valve,low pulsation operation,providing smooth and rapid changeover.
No electricity . It’s safe and realiable while using in the flammable and explor place .
Diversity of material,no rotating parts,applicable to various erosive situations.

Model	CalibreSIZE	Max.Flow(L/min)	Max.Head(M)	Outlet pressure(bar)	Air inlet size

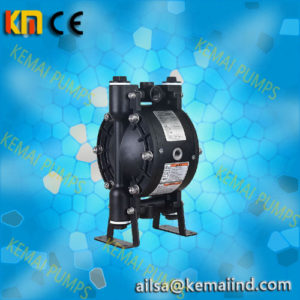

AODD-10	10 (3/8″)	22	70	7	1/4″
AODD-15	15 (1/2″)	22	70	7	1/4″
AODD-20	20 (3/4″)	57	70	7	1/4″
AODD-25	25 (1″)	57	70	7	1/4″
AODD-25A	25 (1″)	116	84	8.4	1/2″
AODD-32	32 (1.2″)	151	84	8.4	1/2″
AODD-40	40 (1.5″)	151	84	8.4	1/2″
AODD-40A	40 (1.5″)	378.5	84	8.4	1/2″
AODD-50	50 (2″)	378.5	84	8.4	1/2″
AODD-65	65 (2.5″)	378.5	84	8.4	1/2″
AODD-50A	50 (2″)	586	84	8.4	1/2″
AODD-80	80 (3″)	586	84	8.4	1/2″
AODD-100	100 (4″)	586	84	8.4	1/2″
AODD-80A	80 (3″)	1041	84	8.4	3/4″
AODD-125	125 (5″)	1041	84	8.4	3/4″
