Product Description

CB-B Gear Pump： The oil pump features beautiful appearance, convenient maintenance, large flow and low noise from helical gears. It is widely used in metallurgy, ships, oil stations, plywood machinery and other hydraulic systems with working pressure lower than 2.5MPa.It can also be used in oil fields, oil tankers, oil vehicles, after corrosion prevention treatment, it can be used as a large flow pump pumping water.





















Structural characteristics of

1. Small volume,

2. Light weight,

3. Simple structure

4.  Reliable work

5. Easy maintenance

6. Used in the hydraulic system of machine tools

7. Textile machinery

8. As hydraulic energy and lubricating oil source



Gear pump directory:

Model	Flux L/min	Pressure Mpa	rotation r/min	Volumetric NV%	Weight (kg)	power (kw)
CB-B2.5	2.5	2.5	1450	≥ 70	1.6	0.13
CB-B4	4			≥ 80	1.7	0.21
CB-B6	6				1.8	0.31
CB-B10	10				2.1	0.51
CB-B16	16			≥ 90	4.2	0.82
CB-B20	20				4.4	1.02
CB-B25	25				4.6	1.30
CB-B32	32			≥ 94	5.0	1.65
CB-B40	40				7.2	2.10
CB-B50	50				7.6	2.60
CB-B63	63				7.8	3.30
CB-B80	80				12.6	4.10
CB-B100	100			≥ 95	13.3	5.10
CB-B125	125				14.5	6.50
CB-B160	160				15.6	8.2

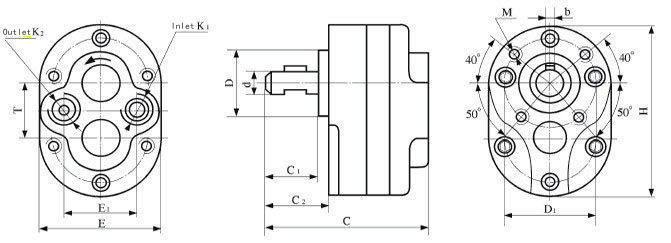

Gear pump size drawing:

















Model	C	E	H	C1	C2	D(f8)	D1	d(h7)	E1	T	b	M	K1	K2
CB-B2.5	79	66	96	25	30	Φ50	Φ12	35	30	4	M6	Z3/8″	Z3/8″	Z3/8″
CB-B4	82
CB-6	86
CB-B10	94
CB-B16	107	90	132	30	35	Φ50	Φ55	Φ6	50	42	5	M8	Z3/4″	Z3/4″
CB-B20	111
CB-B25	115
CB-B32	121
CB-B40	132	102	154	35	40	Φ55	Φ80	Φ22	55	52	6	M8	Z1″	Z3/4″
CB-B50	138
CB-B63	144
CB-B80	158	121	186	45	50	Φ70	Φ95	Φ30	65	65	8	M8	Z11/4″	Z1″
CB-B100	165
CB-B125	174
CB-B1	186							Φ35
