CB-B500 CB-B550 CB-B600 Gear Pump

Category:

Product Description

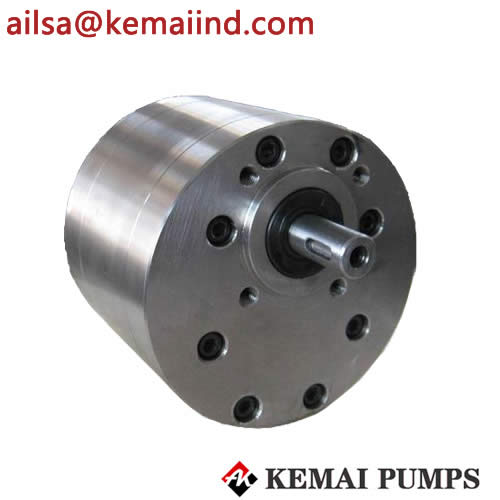

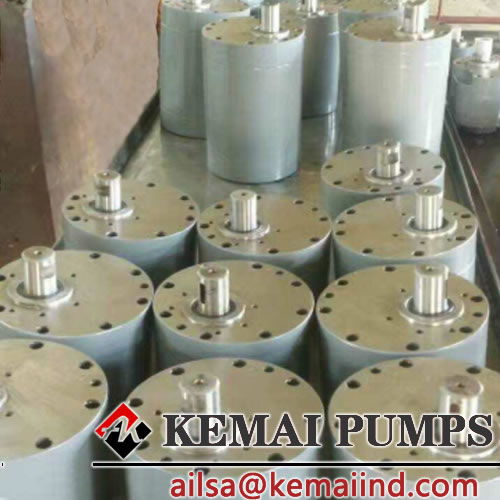

CB-B Gear Pump: The oil pump features beautiful appearance, convenient maintenance, large flow and low noise from helical gears. It is widely used in metallurgy, ships, oil stations, plywood machinery and other hydraulic systems with working pressure lower than 2.5MPa.It can also be used in oil fields, oil tankers, oil vehicles, after corrosion prevention treatment, it can be used as a large flow pump pumping water.

Outline drawing:

Gear Pump CB-B Size Figure

Gear Pump CB-B Size Figure

Technical Data:

CB-B gear pump model Rated flow
L/min
Rated pressure
MPa
Rated Speed

r/min

Efficiency

ηv%

General Efficiency

ηt%

Motor power
KW
CB-B160 160 2.5 1450 ≥90 ≥80 8.2
CB-B200 200 2.5 1450 ≥90 ≥80 10.1
CB-B250 250 2.5 1450 ≥90 ≥80 13
CB-B300 300 2.5 1450 ≥90 ≥80 15
CB-B350 350 2.5 1450 ≥90 ≥80 17
CB-B400 400 2.5 1450 ≥90 ≥80 20
CB-B500 500 2.5 1450 ≥90 ≥80 24
CB-B550 550 2.5 1450 ≥90 ≥80 28
CB-B600 600 2.5 1450 ≥90 ≥80 30

Technical Size:

Model CB-B160 CB-B200 CB-B250 CB-B300 CB-B350 CB-B400 CB-B500 CB-B550 CB-B600
H 196 210 228 245 263 280 316 335 350

Note: 1. Cb-b500, cb-b550 and cb-b600 gear oil pump outlet is Z2 “.
2. There are two types of user mounting holes (4-m8) and (6-m8).
