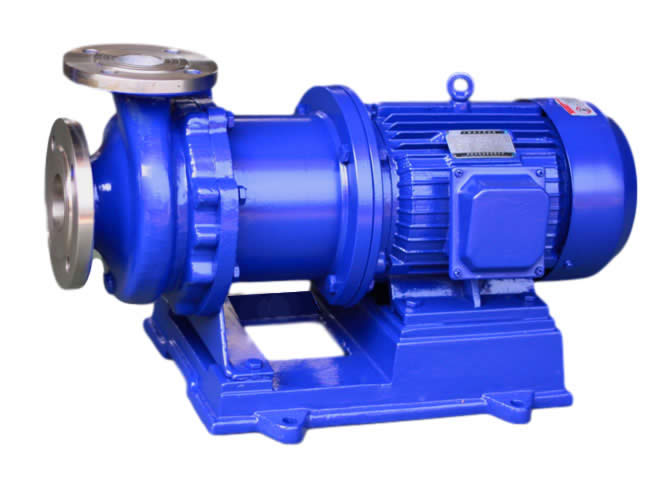

CQB80-50-250 Stainless Steel Magnetic Pump

Product Description

Stainless Steel Magnetic Pump Summary:

China KEMAI pump co., LTD. Develops and produces CQB stainless steel magnetic centrifugal pump (magnetic pump for short), which is composed of motor, magnetic coupling and corrosion-resistant centrifugal pump.Its main characteristic is the use of magnetic coupling to transfer power, completely no leakage, when the motor drives the magnetic steel magnetic coupling rotation, magnetic force line through the gap and isolation sleeve, acting on the internal magnetic steel, so that the pump rotor and motor synchronous rotation, no mechanical contact to transfer torque.At the power input end of the pump shaft, there is no dynamic seal and no leakage because the liquid is enclosed in a static isolation sleeve.CQB type magnetic pump is a new type of completely leakage-free and corrosion-resistant pump developed by the national joint design group of magnetic pump.

CQB80-50-250 Stainless Steel Magnetic Pump Block diagrams

CQB magnetic pump is suitable for petroleum, chemical, pharmaceutical, smelting, electroplating, environmental protection, food, film and television washing and printing, water treatment, national defense and other industries.It is suitable for conveying liquids without hard particles and fibers with suction pressure no more than 0.2mpa, maximum working pressure no more than 1.6mpa, temperature no more than 100℃, density no more than 1600kg/m3 and viscosity no more than 30×10-6m2 / S.

CQB80-50-250 Stainless Steel Magnetic Pump Information:

Model CQB80-65-125 Flow 50m3/h
Origin Cangzhou city, hebei province, China Head 20m
Material SS304,SS316,SS316 Power 7.5KW
Inlet 80mm Cavitation Allowance 3.5m
Outlet 65mm Speed 2900r
Brand KEMAI PUMP Voltage 380V
Conveying Medium Corrosive Liquid Pump Shaft Position horizontal
USES Chemical Pump Drive Way magnetic
Impeller Suction Method Single Suction Impeller Structure Enclosed Impeller

CQB80-50-250 Stainless Steel Magnetic Pump Performance Parameters:

Model mm Flow

m3/h

Head

m

Cavitation allowance

m

Power

KW

Speed

rpm

Voltage

v

Inlet Outlet
CQB32-20-125 32 20

3.2

20 4.5 1.5 2900 380
CQB32-20-160 32 4.5 2.2 2900 380
CQB40-25-125 40 25 6.3 20 4.5 2.2 2900 380
CQB40-25-160 32 4.5 3 2900 380
CQB40-25-200 50 4.5 5.5 2900 380
CQB50-32-100 50 32 12.5 12.5 4.0 2.2 2900 380
CQB50-32-125 20 4.0 3 2900 380
CQB50-32-160 32 4.0 4 2900 380
CQB50-32-200 50 4.0 7.5 2900 380
CQB50-32-250 80 4.0 18.5 2900 380
CQB65-50-125 65 50 25 20 4.0 4 2900 380
CQB65-50-160 32 4.0 7.5 2900 380
CQB65-40-200 40 50 4.0 15 2900 380
CQB65-40-250 80 4.0 22 2900 380
CQB80-65-125 80 65 50 20 3.5 7.5 2900 380
CQB80-65-160 32 3.5 15 2900 380
CQB80-50-200 50 50 3.5 22 2900 380
CQB80-50-250 80 3.5 37 2900 380
CQB100-100-100 100 100 100 12.5 3.2 7.5 2900 380
CQB100-80-125 80 20 3.2 15 2900 380
CQB100-80-160 32 3.2 22 2900 380
CQB100-65-200 65 50 3.2 37 2900 380
CQB100-65-250 80 3.2 55 2900 380
CQB125-125-160 125 125 160 32 3.2 37 2900 380
CQB125-100-200 100 200 50 3.2 75 2900 380
CQB125-100-250 80 3.2 90 2900 380
