Product Description

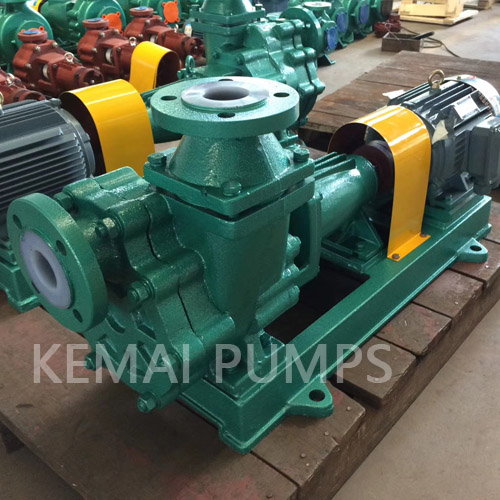

FZB Plastic lined centrifugal pump overview:

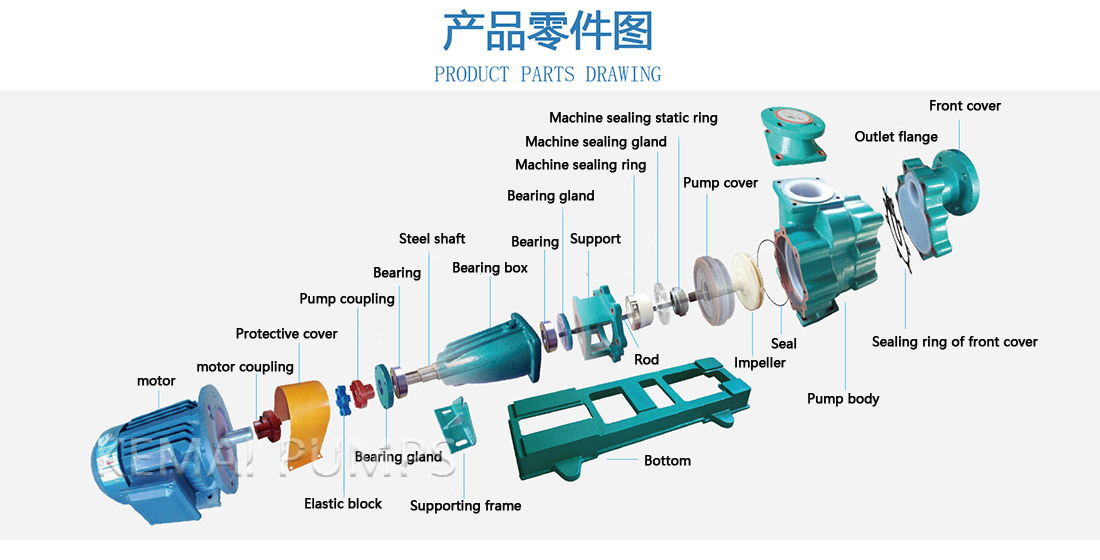

FZB series fluoroplastic self-priming pump adopts external mixing self-priming structure. The pump is filled with liquid when it is started for the first time, and then starts frequently, so there is no need for water injection vacuum drainage.Self-priming pump body adopts metal case lined with fluoroplastic contact medium components are all made of fluoroplastic alloy, pump cover, impeller, fluorine plastic with metal insert outsourcing whole sintering suppression and become, shaft seal mounted outside using advanced bellows mechanical seal, static choose 99.9% alumina or silicon carbide rings, ring with four fluorine filling materials, its excellent corrosion resistant seal.
FZB Teflon Pipeline Pump Fluorine Lining Process
Advantages of FZB plastic lined centrifugal pump:
Corrosion resistance, wear resistance, high temperature resistance, no aging, high mechanical strength, smooth operation, advanced and reasonable structure, strict and reliable sealing performance, convenient disassembly and maintenance, long service life and other advantages.Can be used in a certain range instead of liquid pump.Self-imbibition height can be determined according to medium density within 1 to 5 meters.
FZB plastic lined centrifugal pump Application range:
FZB use a wide range of self – priming pump, the tank will be underground pumping corrosive fluid to the target location,No exports to the bottom of the acid – base acid – base tank pumping to the target location, or for a number of acid cycle between the trough, the or for dumping acid, widely, informs in chemical, pesticides,Acid SODA, Paper, Pickling Technology, Electronics Industries

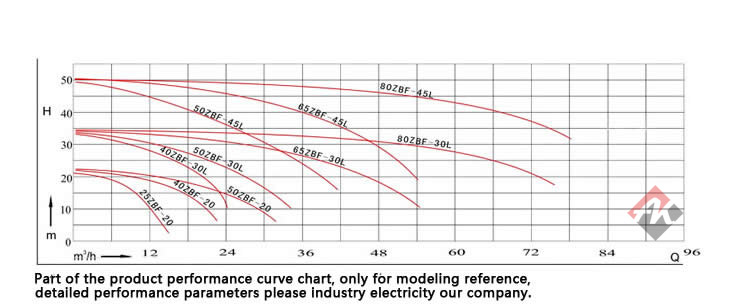

FZB self-priming pump parameters:
| Type | Flow m3/h | Head
m |
Inlet mm | Outlet mm | Cavitation allowance
m |
Speed r/min | Motor power KW |
| 25ZBF(FZB)-20L | 3.6 | 18 | 25 | 25 | 3.0 | 2900 | 2.2 |
| 40ZBF(FZB)-20L | 8 | 20 | 40 | 50 | 3.0 | 2900 | 3 |
| 40ZBF(FZB)-30L | 8 | 30 | 40 | 50 | 3.5 | 2900 | 4 |
| 50ZBF(FZB)-20L | 12 | 20 | 50 | 50 | 3.0 | 2900 | 3 |
| 50ZBF(FZB)-30L | 12 | 30 | 50 | 50 | 3.5 | 2900 | 4 |
| 50ZBF(FZB)-45L | 12 | 45 | 50 | 32 | 3.5 | 2900 | 7.5 |
| 65ZBF(FZB)-30L | 25 | 30 | 65 | 50 | 4.0 | 2900 | 7.5 |
| 65ZBF(FZB)-45L | 25 | 45 | 65 | 40 | 4.0 | 2900 | 11 |
| 80ZBF(FZB)-30L | 50 | 30 | 80 | 65 | 4.5 | 2900 | 11 |
| 80ZBF(FZB)-45L | 50 | 45 | 80 | 65 | 4.5 | 2900 | 15 |
| 100ZBF(FZB)-30L | 100 | 30 | 100 | 80 | 6.0 | 2900 | 18.5 |
| 100ZBF(FZB)-45L | 100 | 45 | 100 | 80 | 6.0 | 2900 | 30 |
