Stainless Steel Mono Screw Pump
Stainless Steel Mono Screw Pump
The pump is also called mono single screw pump, professional transport viscosity liquid, the rotary part of the pump inertia force is low, can be used at high speed, with a good self-priming capacity, flow continuous uniform, vibration, small noise single low, solid structure, long service life.
Product Description
Application Range Of Stainless Steel Screw Pump:
Food industry: used for distilleries to transport liquor, waste residue and the transport of ingredients in the process of wine making.
Textile industry: used for conveying synthetic fiber liquid, viscose liquid, dye liquid, ink, nylon powder liquid.
Manufacturing industry: used for pulp black liquor transport.
Oil industry: used for a variety of oil, grease products ground delivery pump.
Chemical industry: used to transport various suspension, latex liquid, acid, alkali, salt liquid, etc.
Shipbuilding: used for conveying residual oil, cleaning tank and sewage, sea water, etc.
Construction industry: conveying mortar and plaster.
Nuclear industry: conveyor belt particles radioactive liquid.
Metallurgy and mining: used to transport oxides and waste water, mine drainage and liquid explosives.
Power plant: for the transportation of coal water slurry.

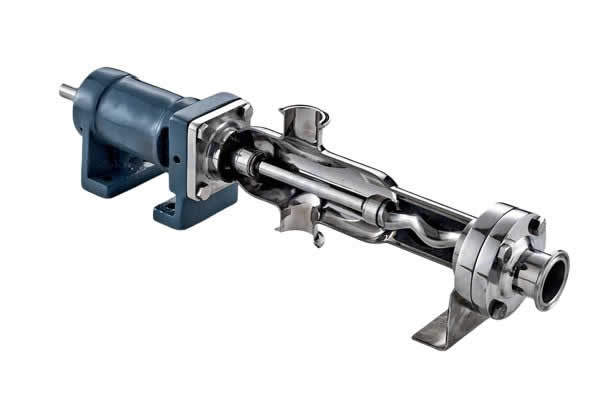

Stainless steel mono single bare rod pump picture
Stainless Steel Single Screw Pump Technical Parameters:
| Model | Speed r/min |
Flow m3/h |
Motor KW |
Allowable Particle Diameter mm |
Allowable Fiber Length mm |
| G15-1 | 960 | 1 | 0.55 | 1.5 | 15 |
| G20-1 | 960 | 1.5 | 0.75 | 3.5 | 20 |
| G25-1 | 960 | 2 | 1.1 | 4.5 | 26 |
| G30-1 | 960 | 3 | 1.5 | 5 | 30 |
| G35-1 | 960 | 5 | 2.2 | 5.7 | 35 |
| G40-1 | 960 | 7 | 3 | 7.1 | 40 |
| G45-1 | 960 | 9 | 4 | 8 | 45 |
| G50-1 | 960 | 13 | 5.5 | 9 | 51 |
| G55-1 | 960 | 18 | 7.5 | 10 | 55 |
