Product Description

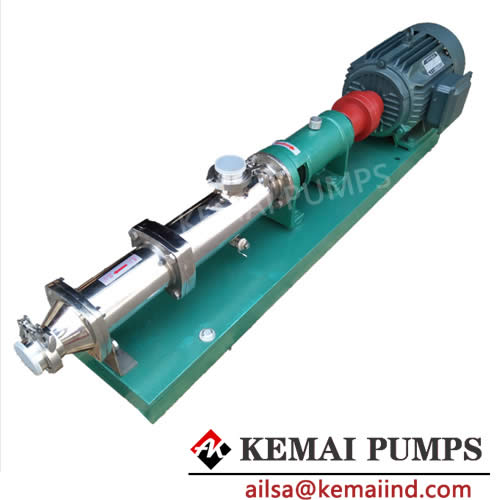

Stainless Steel Single Screw Pump Material Of SS 304 SUS 304 SUS 316 SS 316L

The screw pump can be used to transport neutral or corrosive liquid, clean or wear liquid, containing gas or easy to produce bubbles of liquid, high viscosity or low viscosity of liquid, including fiber and solid material liquid.

Stainless steel single screw pump structure:

1, discharge cavity 2, tie rod 3, screw rubber sleeve 4, screw shaft 5, universal joint assembly 6, suction body
7, joint shaft 8, filler 9, packing gland 10, bearing seat 11、Bearing cover 12, motor 13, coupling 14, bushing
15, bearing 16, transmission spindle 17, base

Technical Parameters：

Model	Speed r/min	Flow m3/h	Motor KW	Allowable Particle Diameter mm	Allowable Fiber Length mm
G15-1	960	1	0.55	1.5	15
G20-1	960	1.5	0.75	3.5	20
G25-1	960	2	1.1	4.5	26
G30-1	960	3	1.5	5	30
G35-1	960	5	2.2	5.7	35
G40-1	960	7	3	7.1	40
G45-1	960	9	4	8	45
G50-1	960	13	5.5	9	51
G55-1	960	18	7.5	10	55
