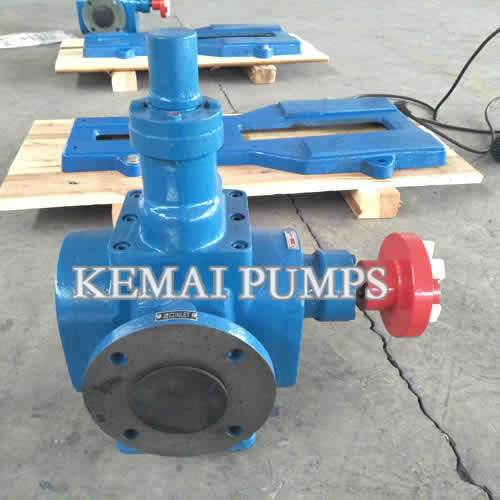

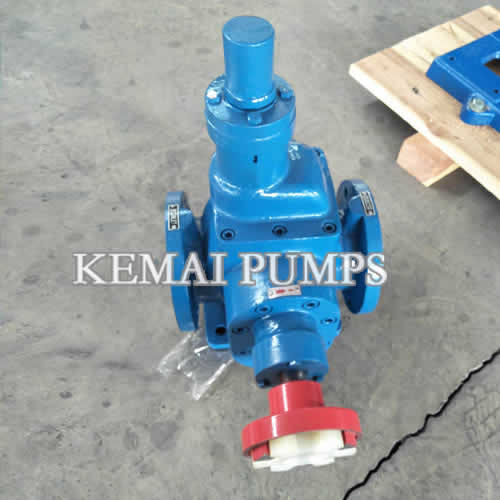

YCB Arc Gear Pump
YCB Arc Gear Pump
Flow:0.6~80M3/H
Head:0.6-1.6-2.5MPA
Gear:Arc shape
Material: cast iron, cast steel, stainless steel(304,316,316L)
Viscosity range:5-1500cSt
Applicable temperature:cast iron material≤120℃; cast steel material≤280℃
Product Description
YCB arc gear pump are designed with the model of Double-arc Sine Curves gears. Ideal for applications as:
a) Oil transfer and boosting pump in oil delivering systems.
b) Diesel oil transfer pump boosting and injecting pump in fuel burning systems.
c) Hydraulic power pump in hydraulic system.
d) Lubricating pump in various industrial fields.
YCB gear pump features
● Smooth and efficient operation with low noise and long life.
● Media temperature up to 120℃ and viscosity any point between 5~1500 cst.
● Overload protection with pressure differential safety valve, 1.5 times the rated pressure. How-ever, safety valve is not recommended to be used as pressure relief valve.
● Soft packing and mechanical seals available for choice.
YCB arc gear pump flow and head data
| Model | Capacity
Q |
Speed
n |
Pressure
p |
(NPSH)r m |
YCB gear pump with motor power | ||
| m3/h | Hz | KW | Model | ||||
| YCB0.6-0.6 | 0.6 | 910 | 0.6 | 5.5 | 50 | 0.75 | Y90S-6 |
| 1.0 | 1390 | 50 | 0.75 | Y80L2-4 | |||
| 0.7 | 1130 | 60 | 0.75 | Y90S-6 | |||
| 1.2 | 1710 | 60 | 0.75 | Y80L2-4 | |||
| YCB0.6-1.6 | 0.6 | 910 | 1.6 | 7.0 | 50 | 1.1 | Y90L-6 |
| 1.0 | 1400 | 50 | 1.5 | Y90L-4 | |||
| 0.7 | 1130 | 60 | 1.1 | Y90L-6 | |||
| 1.2 | 1710 | 60 | 1.1 | Y90S-4 | |||
| YCB1.6-0.6 | 1.6 | 910 | 0.6 | 5.5 | 50 | 0.75 | Y90S-6 |
| 2.5 | 1400 | 50 | 1.1 | Y90S-4 | |||
| 1.9 | 1130 | 60 | 1.1 | Y90L-6 | |||
| 3.0 | 1710 | 60 | 1.5 | Y90L-4 | |||
| YCB1.6-1.6 | 1.6 | 940 | 1.6 | 7.0 | 50 | 2.2 | Y112M-6 |
| 2.5 | 1440 | 50 | 4 | Y112M-4 | |||
| 1.9 | 1150 | 60 | 2.2 | Y112M-6 | |||
| 3.0 | 1750 | 60 | 4 | Y112M-4 | |||
| YCB3.3-0.6 | 3.3 | 940 | 0.6 | 5.0 | 50 | 1.5 | Y100L-6 |
| 5.0 | 1420 | 50 | 2.2 | Y100L1-4 | |||
| 4.0 | 1150 | 60 | 1.5 | Y100L-6 | |||
| 6.0 | 1730 | 60 | 2.2 | Y100L1-4 | |||
| YCB3.3-1.6 | 3.3 | 960 | 1.6 | 7.0 | 50 | 5.5 | Y132M2-6 |
| 5.0 | 1440 | 50 | 7.5 | Y132M-4 | |||
| 4.0 | 1170 | 60 | 4 | Y132M1-6 | |||
| 6.0 | 1750 | 60 | 7.5 | Y132M-4 | |||
| YCB4-0.6 | 4.0 | 940 | 0.6 | 5.0 | 50 | 1.5 | Y100L-6 |
| 6.0 | 1420 | 50 | 2.2 | Y100L1-4 | |||
| 4.8 | 1150 | 60 | 2.2 | Y112M-6 | |||
| 7.2 | 1730 | 60 | 3 | Y100L2-4 | |||
| YCB4-1.6 | 4.0 | 960 | 1.6 | 7.0 | 50 | 5.5 | Y132M2-6 |
| 6.0 | 1440 | 50 | 7.5 | Y132M-4 | |||
| 4.8 | 1170 | 60 | 5.5 | Y132M-6 | |||
| 7.2 | 1750 | 60 | 7.5 | Y132M-4 | |||
| YCB8-0.6 | 8.0 | 960 | 0.6 | 5.0 | 50 | 3 | Y132S-6 |
| 12.0 | 1440 | 50 | 5.5 | Y132S-4 | |||
| 9.6 | 1170 | 60 | 4 | Y132M1-6 | |||
| 14.4 | 1750 | 60 | 5.5 | Y132S-4 | |||
| YCB8-1.6 | 8.0 | 970 | 1.6 | 7.0 | 50 | 11 | Y160L-6 |
| 12.0 | 1460 | 50 | 15 | Y160L-4 | |||
| 9.6 | 1170 | 60 | 11 | Y160L-6 | |||
| 14.4 | 1760 | 60 | 15 | Y160L-4 | |||
| YCB10-0.6 | 10.0 | 960 | 0.6 | 5.0 | 50 | 4 | Y132M1-6 |
| 15.0 | 1440 | 50 | 5.5 | Y132S-4 | |||
| 12.0 | 1170 | 60 | 5.5 | Y132M2-6 | |||
| 18.0 | 1750 | 60 | 7.5 | Y132M-4 | |||
| YCB10-1.6 | 10.0 | 970 | 1.6 | 7.0 | 50 | 11 | Y160L-6 |
| 15.0 | 1470 | 50 | 15 | Y160L-4 | |||
| 12.0 | 1170 | 60 | 11 | Y160L-6 | |||
| 18.0 | 1770 | 60 | 18.5 | Y160L-4 | |||
| YCB20-0.6 | 20.0 | 970 | 0.6 | 5.0 | 50 | 7.5 | Y160M-6 |
| 24.0 | 1170 | 60 | 7.5 | Y160M-6 | |||
| YCB25-0.6 | 25.0 | 970 | 0.6 | 5.5 | 50 | 11 | Y160L-6 |
| 30.0 | 1170 | 60 | 11 | Y160L-6 | |||
| YCB30-0.6 | 30.0 | 970 | 0.6 | 5.5 | 50 | 11 | Y160L-6 |
| 36.0 | 1170 | 60 | 11 | Y160L-6 | |||
| YCB40-0.6 | 40.0 | 970 | 0.6 | 5.5 | 50 | 15 | Y180L-6 |
| 48.0 | 1180 | 60 | 15 | Y180L-6 | |||
| YCB50-0.6 | 50.0 | 970 | 0.6 | 5.5 | 50 | 22 | Y200L2-6 |
| 60.0 | 1180 | 60 | 22 | Y200L2-6 | |||
