Product Description
G Food Grade Mono Screw Pump is a new type of pump according to the principle of moving meshing displacement, the main working parts are eccentric screw (rotor) and fixed bushing (stator).
Due to the special geometry of the two parts, separate sealing cavity is formed, the medium is pushed evenly by the axial direction to flow, the internal flow rate is low, the volume remains unchanged, the pressure is stable, so there will be no vortex and agitation.The output pressure of each pump is 0.6mpa and the head is 60m(clear water). It is suitable for the temperature of conveying medium below 80℃ (up to 150℃ for special requirements).

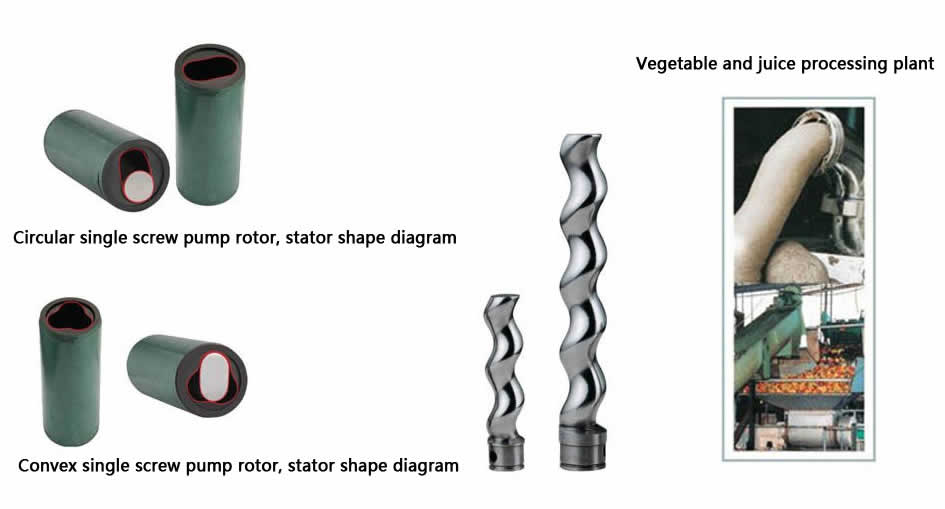

Structure of food grade mono screw pump

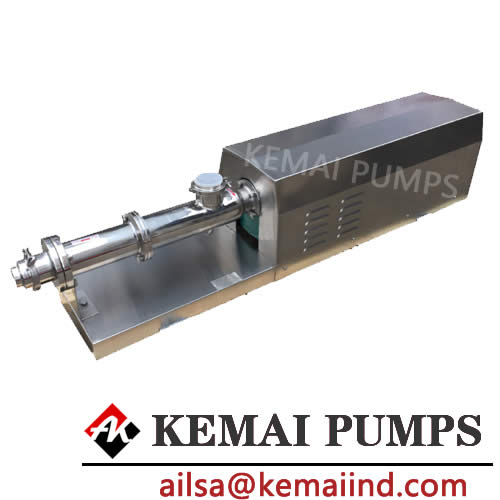

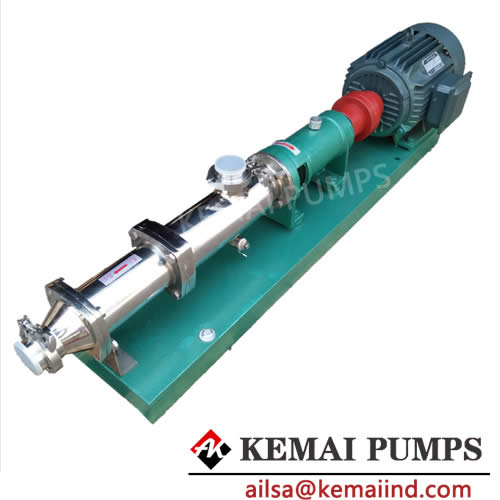

Picture of food grade mono screw pump
Application field of food grade mono screw pump
Technical Parameters：
| Model | Speed r/min |
Flow m3/h |
Motor KW |
Allowable Particle Diameter mm |
Allowable Fiber Length mm |
| G15-1 | 960 | 1 | 0.55 | 1.5 | 15 |
| G20-1 | 960 | 1.5 | 0.75 | 3.5 | 20 |
| G25-1 | 960 | 2 | 1.1 | 4.5 | 26 |
| G30-1 | 960 | 3 | 1.5 | 5 | 30 |
| G35-1 | 960 | 5 | 2.2 | 5.7 | 35 |
| G40-1 | 960 | 7 | 3 | 7.1 | 40 |
| G45-1 | 960 | 9 | 4 | 8 | 45 |
| G50-1 | 960 | 13 | 5.5 | 9 | 51 |
| G55-1 | 960 | 18 | 7.5 | 10 | 55 |
