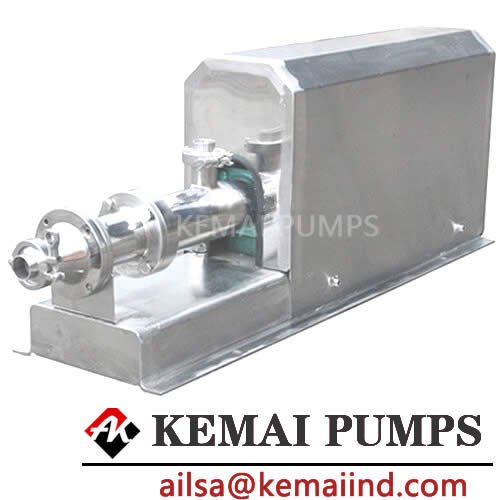

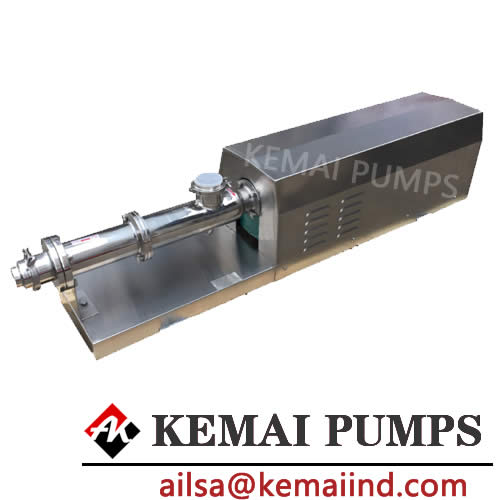

SUS304 SUS316L G Type Single Screw Pump
SUS304 SUS316L G Type Single Screw Pump
Size Range:G15 G20 G25 G30 G35 G40 G45 G50 .Flow Range:1m3/h; 1.5m3/h; 2m3/h; 3m3/h; 5m3/h; 7m3/h; 9m3/h; 13m3/h; 18m3/h
Product Description
G type single screw pump Material:
Made of cast iron, cast steel, SUS304, SUS316L.

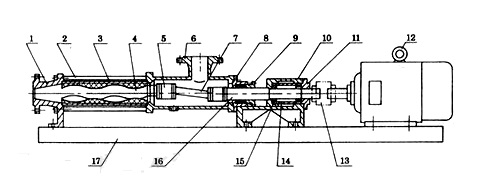

SUS304 G type single screw pump
|
1 |
2 | 3 | 4 | 5 | 6 | 7 | 8 |
9 |
|
discharge cavity |
tie rod | screw rubber sleeve | screw shaft | universal joint assembly | suction body | joint shaft | filler |
packing gland |
|
10 |
11 | 12 | 13 | 14 | 15 | 16 |
17 |
|
|
bearing seat |
Bearing cover | motor | coupling | bushing | bearing | transmission spindle |
base |
G type single screw pump application example:
Food industry: used for distilleries to transport liquor, waste residue and the transport of ingredients in the process of wine making
Textile industry: used for conveying synthetic fiber liquid, viscose liquid, dye liquid, ink, nylon powder liquid.
Manufacturing industry: used for pulp black liquor transport
Oil industry: used for a variety of oil, grease products ground delivery pump
Chemical industry: used to transport various suspension, latex liquid, acid, alkali, salt liquid, etc
Shipbuilding: used for conveying residual oil, cleaning tank and sewage, sea water, etc
Construction industry: conveying mortar and plaster
Nuclear industry: conveyor belt particles radioactive liquid
Metallurgy and mining: used to transport oxides and waste water, mine drainage and liquid explosives
Power plant: for the transportation of coal water slurry
Technical Parameters：
| Model | Speed r/min |
Flow m3/h |
Motor KW |
Allowable Particle Diameter mm |
Allowable Fiber Length mm |
| G15-1 | 960 | 1 | 0.55 | 1.5 | 15 |
| G20-1 | 960 | 1.5 | 0.75 | 3.5 | 20 |
| G25-1 | 960 | 2 | 1.1 | 4.5 | 26 |
| G30-1 | 960 | 3 | 1.5 | 5 | 30 |
| G35-1 | 960 | 5 | 2.2 | 5.7 | 35 |
| G40-1 | 960 | 7 | 3 | 7.1 | 40 |
| G45-1 | 960 | 9 | 4 | 8 | 45 |
| G50-1 | 960 | 13 | 5.5 | 9 | 51 |
| G55-1 | 960 | 18 | 7.5 | 10 | 55 |
