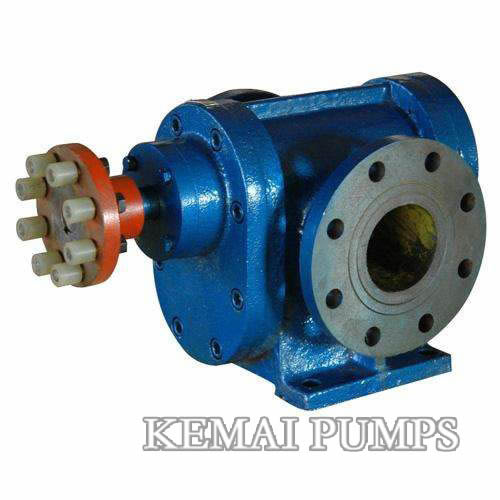

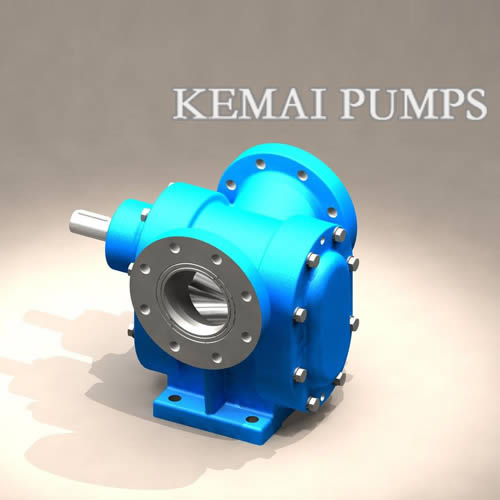

LB Gear Pump For Refrigeration Compressor Oil
LB Gear Pump For Refrigeration Compressor Oil
Product Description
LB gear pump used in transferring N32 of N46 refrigerated lubrica-ting and other lubricant oil of ammonia machine or freon machine.The suited temperature ≤120℃.
Model Explanation
LB 20 / 0.6
LG:Special Use Refrigerator
20:Flow is 20M3/H
0.6:Differential pressure 0.5Mpa
| Model | caliber（mm） | Flow | differential
pressure （MPa） |
maximum outlet pressure
Mpa |
Motor | |||
| m3/h | L/min | KW | Speed
r/min |
Type | ||||
| LB1.8 | 20 | 1.8 | 30 | 0.5 | 2.5 | 0.55 | 1390 | Y801-4 |
| LB3.6 | 25 | 3.6 | 60 | 0.5 | 2.5 | 1.1 | 910 | Y90L-6 |
| LB10 | 40 | 10 | 166.7 | 0.5 | 2.5 | 3 | 1420 | Y100L2-4 |
| LB12 | 40 | 12 | 200 | 0.5 | 2.5 | 3 | 1420 | Y100L2-4 |
| LB20 | 80 | 20 | 333.3 | 0.5 | 2.5 | 5.5 | 960 | Y132M2-6 |
| LB25 | 80 | 25 | 416.7 | 0.5 | 2.5 | 7.5 | 970 | Y160M-6 |
| LB40 | 100 | 40 | 666.7 | 0.5 | 2.5 | 11 | 970 | Y160L-6 |
